Quick Tip for Hanging Wire Antennas on a Mast

A simple, inexpensive way to hang and quickly change wire antennas on a mast during portable testing.

I’m jumping on today to share a quick tip for hanging wire antennas on a mast.

I used this on my last remote operation, and it worked wonderfully. I bought the pieces in bulk from Amazon, and they were inexpensive enough that losing one in the field would not be a big deal.

The hanger is made from three small parts: (links to supplies below)

  • a small carabiner-style clip
  • a drawstring cord lock
  • a small zip tie

This small carabiner-style clip was purchased on Amazon. I think I paid around 30 cents each. These are a nice size for this purpose because they do not add much weight to the mast.

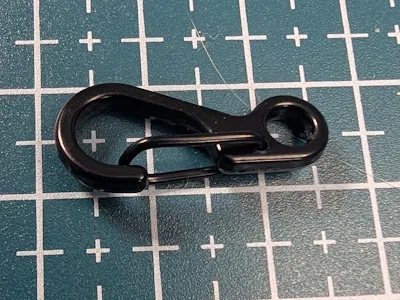

Small carabiner-style clip

The drawstring cord locks are the same general style you might find on clothing or bags to tighten up drawstrings. They are plastic, spring-tensioned, and open with a squeeze.

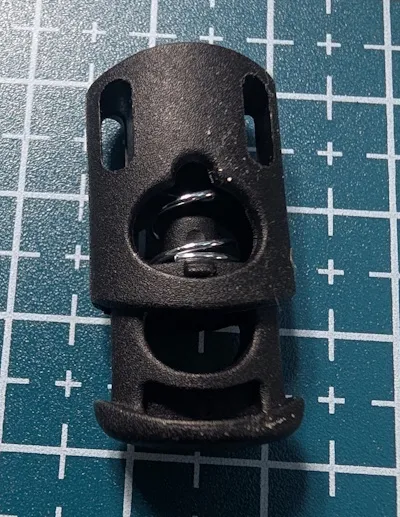

Small String Clasp

When you squeeze the cord lock, it opens wide enough to slide the antenna wire through the hole. When you release it, the cord lock puts enough tension on the wire to hold it in place.

I tested this in very high wind while holding up about 25 feet of silicone-insulated 14 AWG copper wire, and I did not have any issue with the wire coming loose. Here you can see how the wire slides into the cord lock.

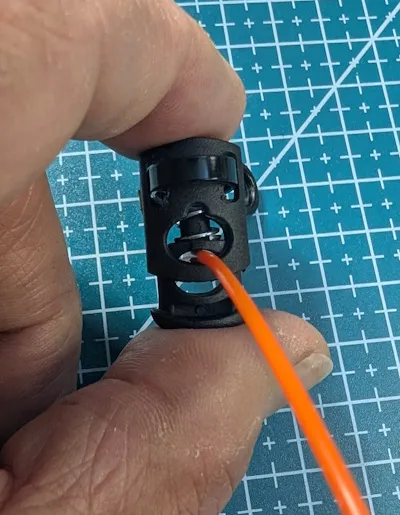

Squeezing the clip

The cord lock also has little slits on the side that work well for placing a zip tie. The zip tie holds the clip and cord lock together. All together, this ended up being as light or lighter than the small carabiners I have seen others use to hang wires.

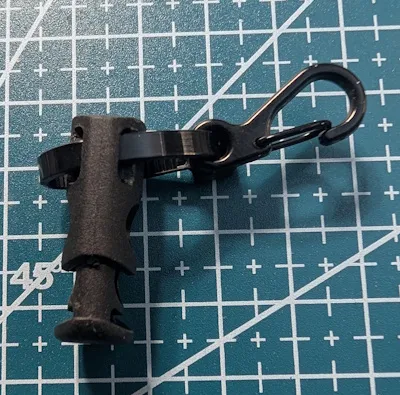

The assembled clip

This is useful when you need to adjust wire length or quickly change one wire for another. I prefer this method over rubber bands, Velcro, or worst of all tape. I really do not want anything sticky around my DX Commander pole.

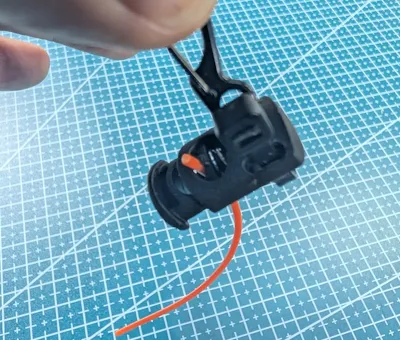

Wire hanging from the clip

If you read my previous Lab Note, you know that I added a key ring to the top section of my DX Commander pole. That key ring gives this little clip mechanism an easy place to attach.

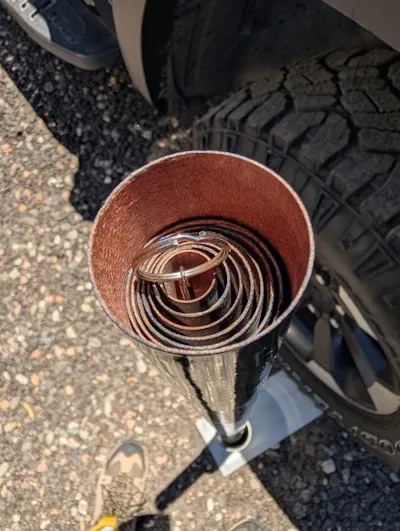

DX Commander with ring attached

I hope you found this useful, it has really made hanging wire antennas easy for me and may for you as well.

Until next time, 73 from the lab.
